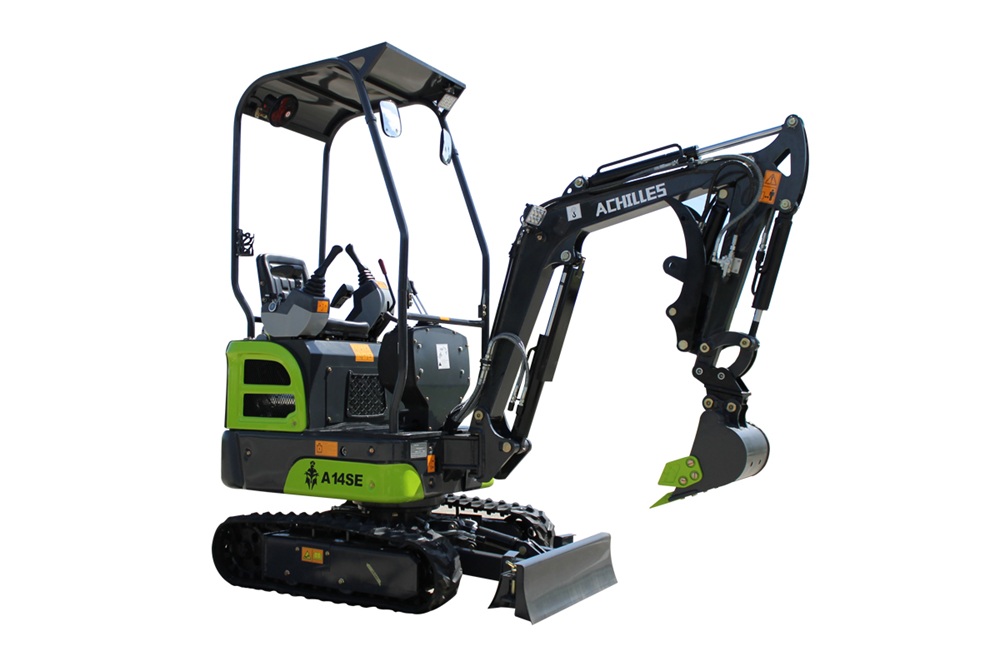

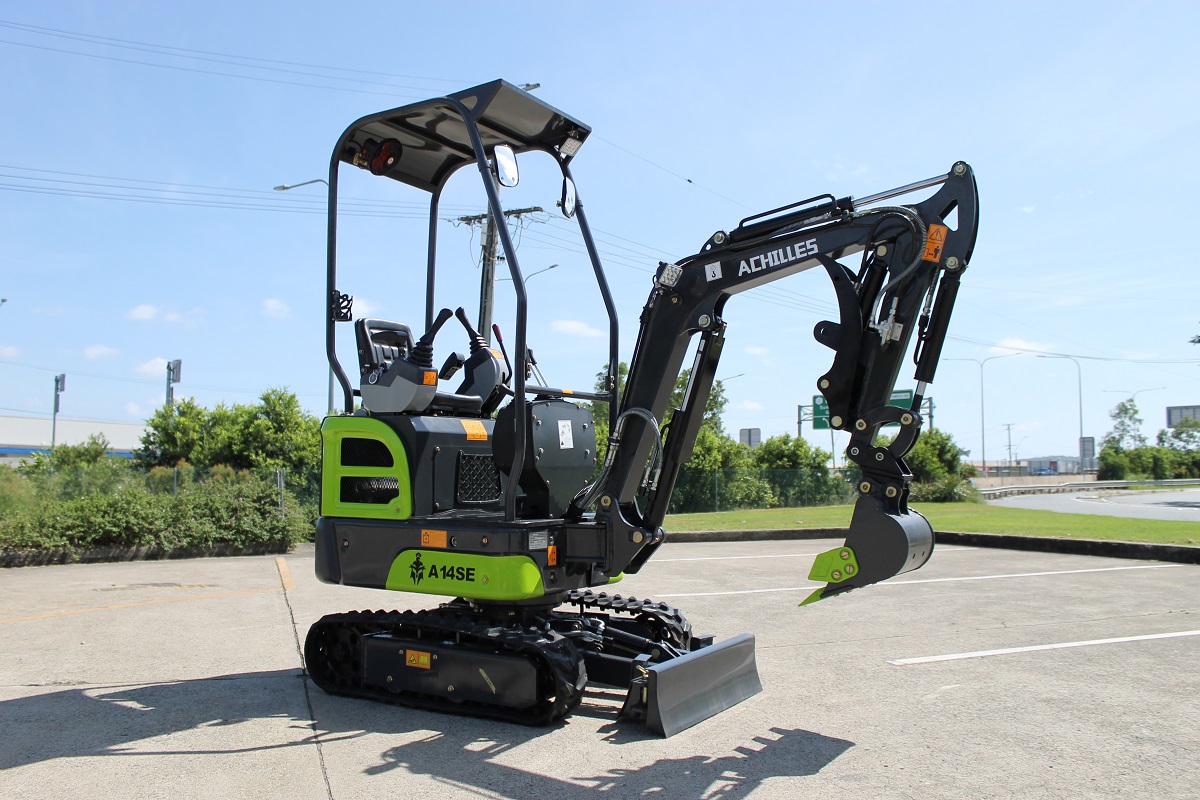

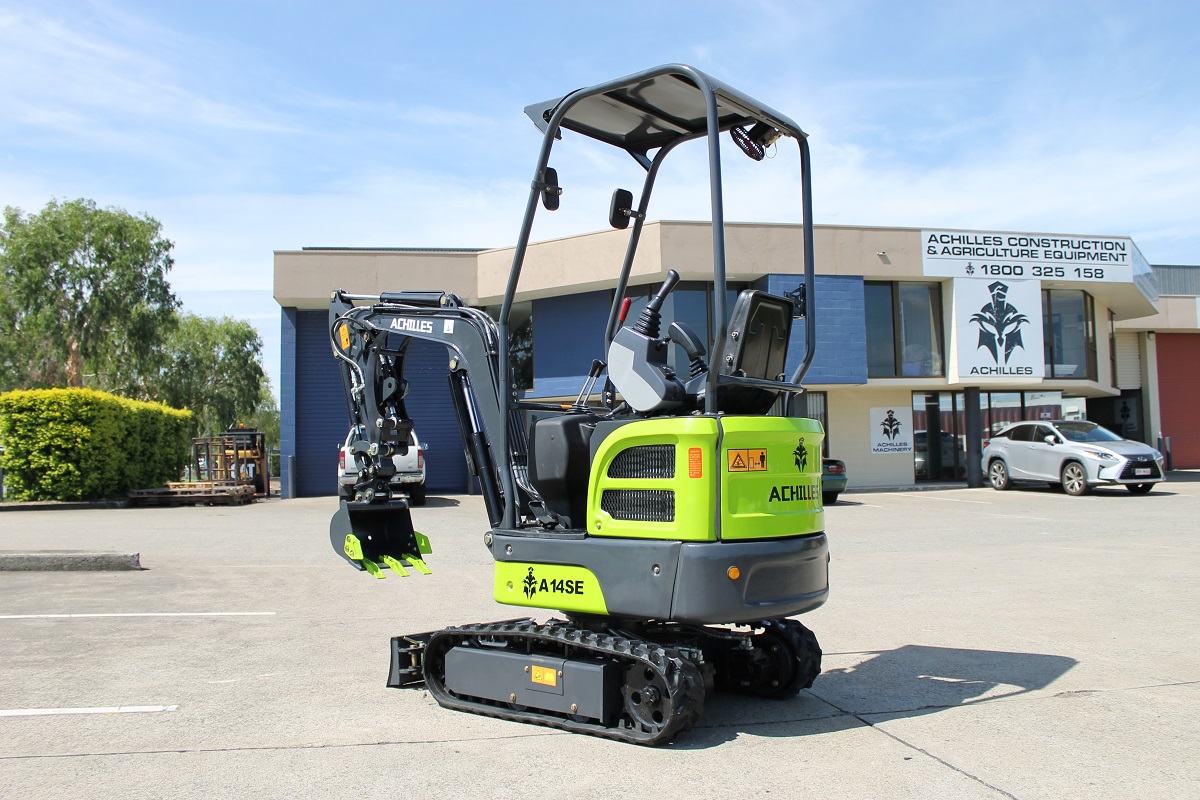

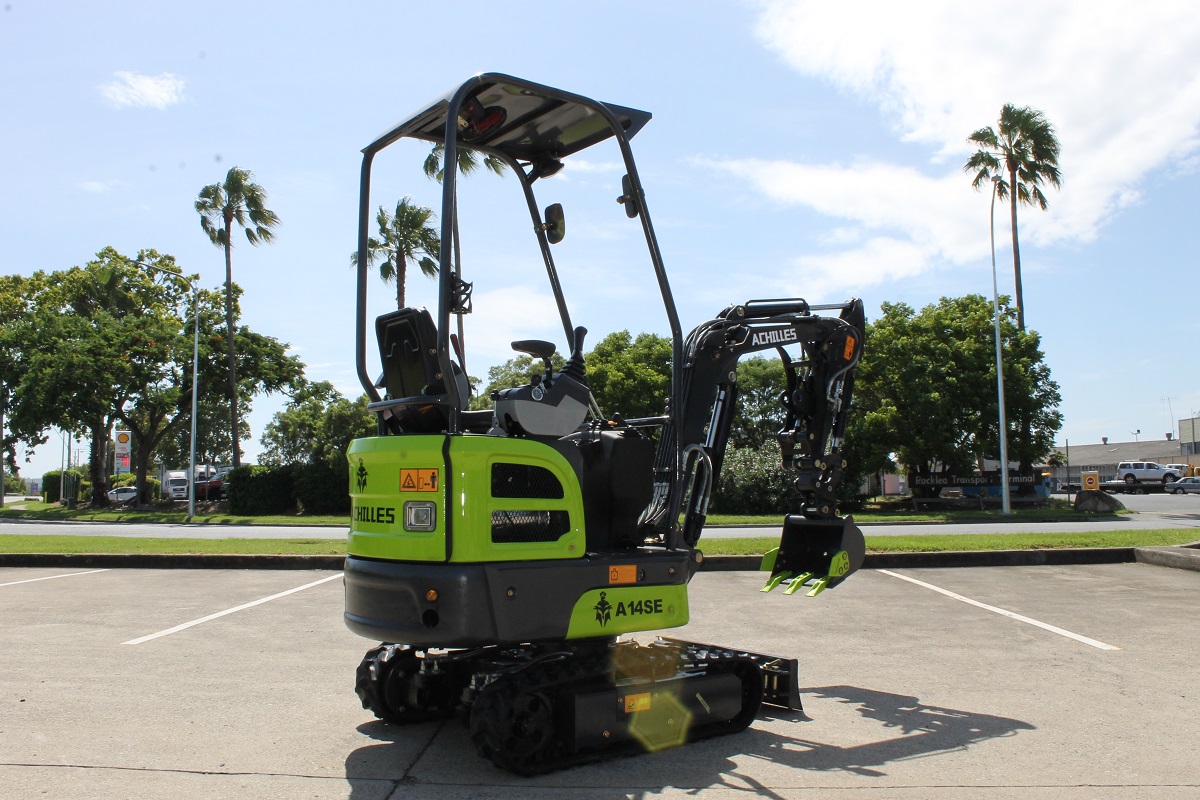

A14SE 1.4T Yanmar mini excavator for sale in New Zealand

A14SE 1.4T Yanmar mini excavator detail image 1 - New Zealand

A14SE Mini Excavator

$19,990.00

200mm trench bucket, 380mm GP bucket and 1000mm mud bucket
Hydraulic thumb grabber, hydraulic quick hitch, 300mm auger, rake and ripper
YANMAR 3TNV70 20.8 HP diesel engine with up to 8.5 kN digging force
Pilot control system and 830-1030mm expandable track width
Up to 3-year / 3000-hour warranty with New Zealand-backed parts support

Ideal for landscaping, trenching, drainage, property maintenance and compact access work across New Zealand.

Request a Quote Call 02041677919

Category: Mini Excavator

Description
Reviews (0)

Description

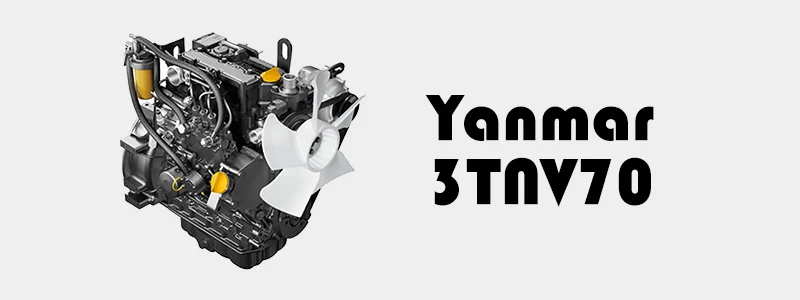

YANMAR 3TNV70 diesel engine for Achilles A14SE mini excavator

COMPACT & POWERFUL:

YANMAR 3TNV70 is a reliable three-cylinder diesel engine, delivering 20.8 HP for smooth compact excavation work.

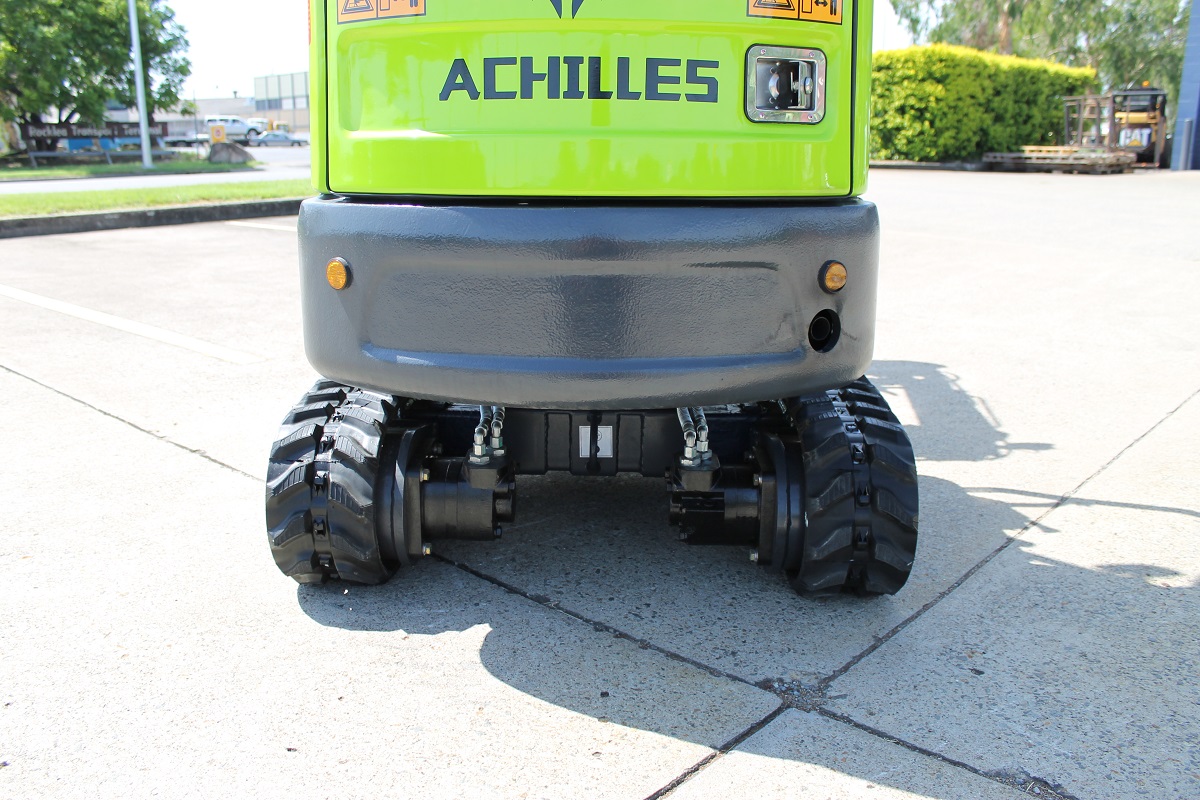

Achilles A14SE mini excavator track width adjustment: expanded 1030mm, reduced 830mm

EASY ACCESSING:

Expandable tracks 830mm-1030mm can pass through narrow space due to narrow width and the undercarriage can be expanded for good stability.

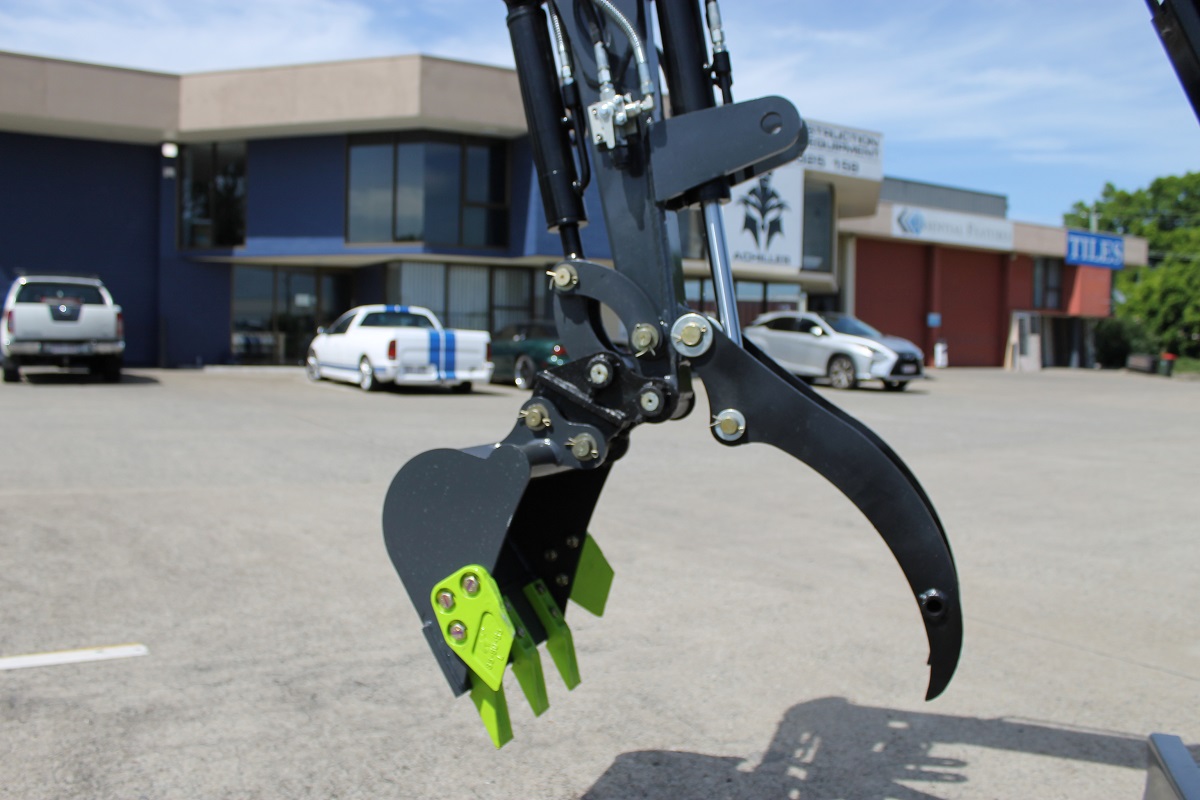

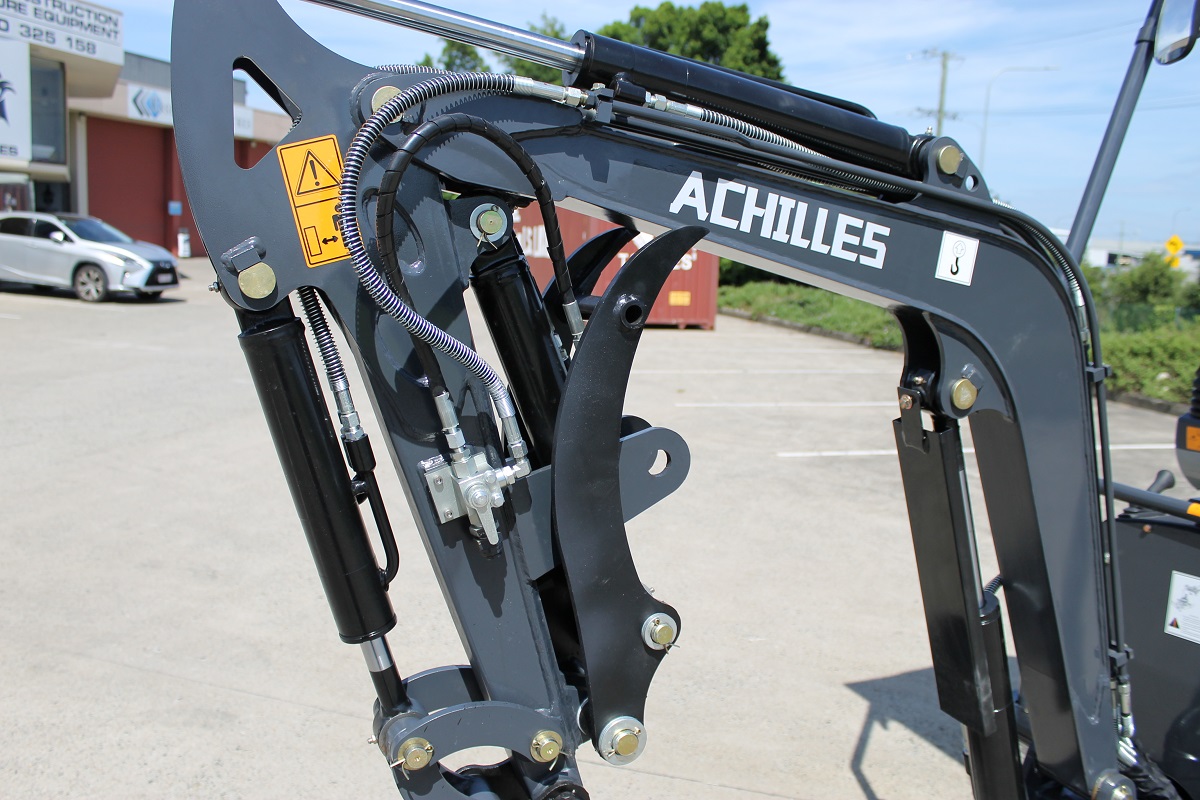

Hydraulic Thumb Grab, showing hydraulic cylinder and grab teeth detail.

GRAB & GO:

Standard Hydraulic Thumb Grab allows operators to pick up various loads without switching to a specialized grabber, ensuring easy and efficient.

ROPS/FOPS compliance image, gold ribbon and seal, with safety certification text.

SAFETY FIRST:

Our machine is ROPS and FOPS certified, highlighting our commitment to safety. The fully enclosed steel protects operators in extreme conditions.

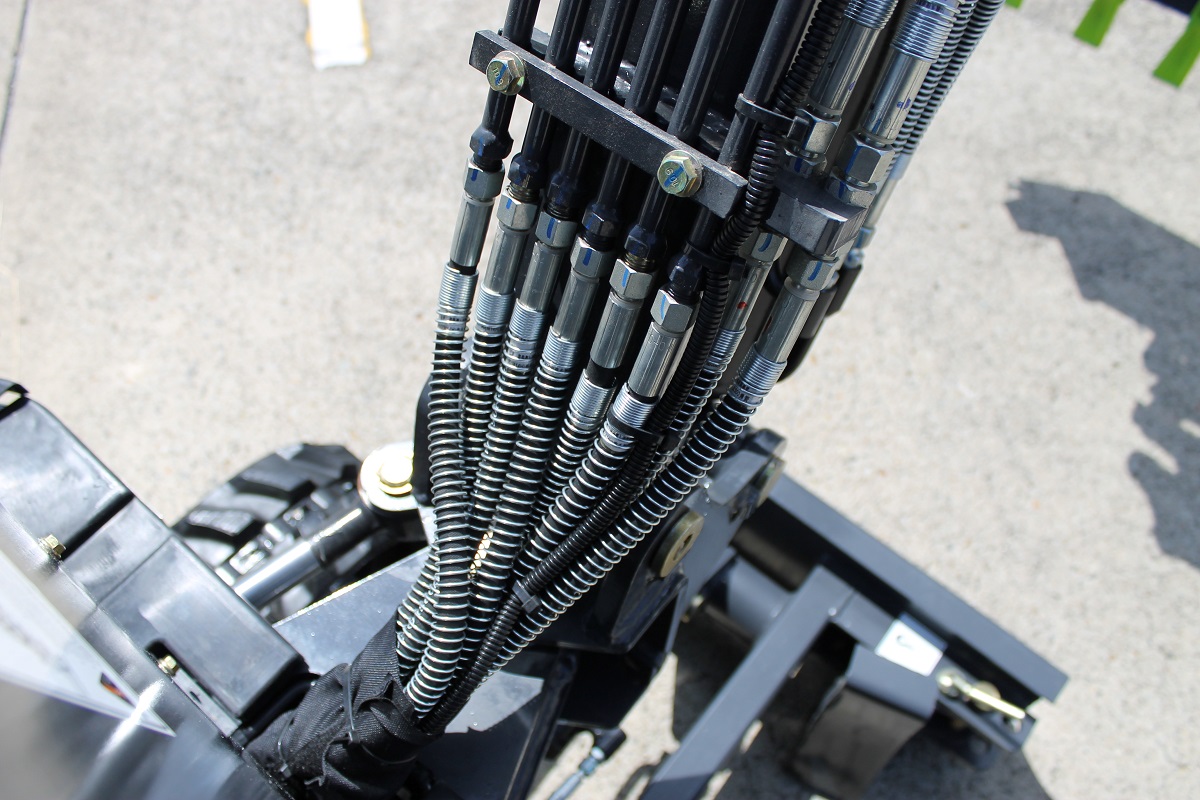

Fully secured hydraulic system on Achilles A14SE mini excavator arm

SOLID & TOUGH:

Built with durable materials, this excavator is tough and reliable. Hydraulic systems are industry-leading and protected for long-lasting performance.

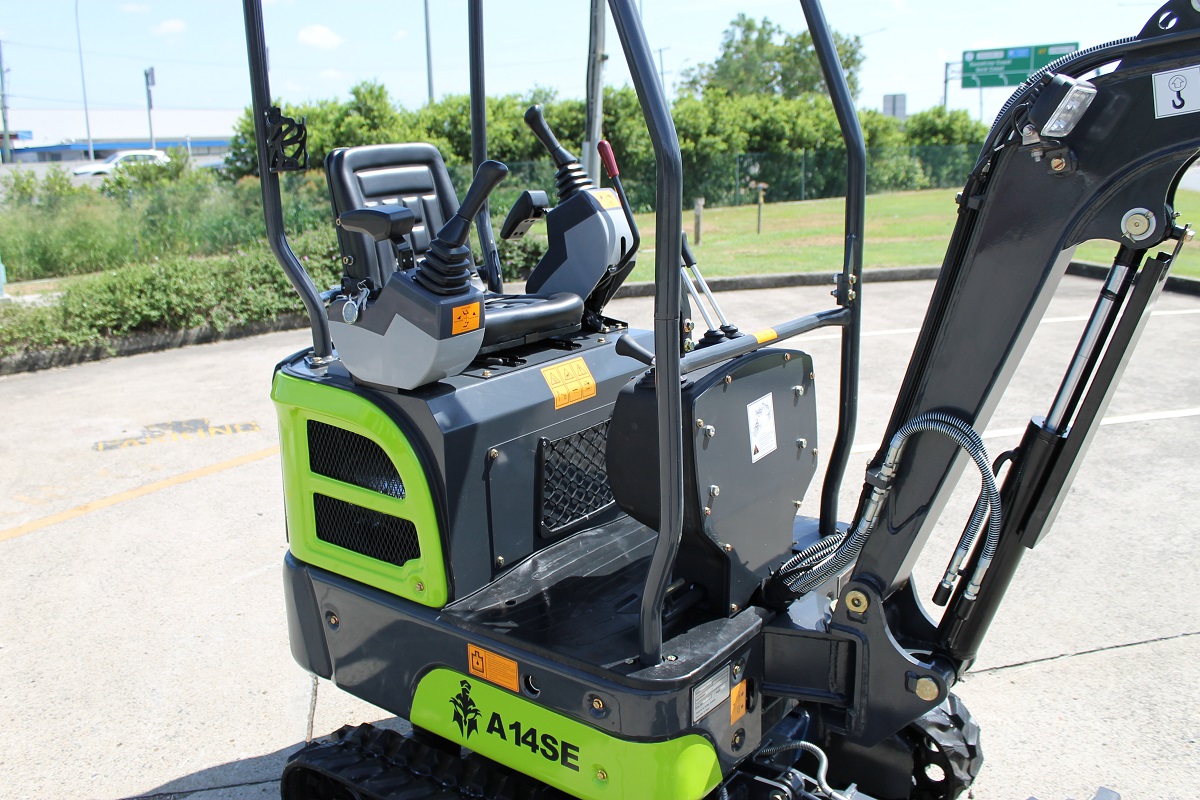

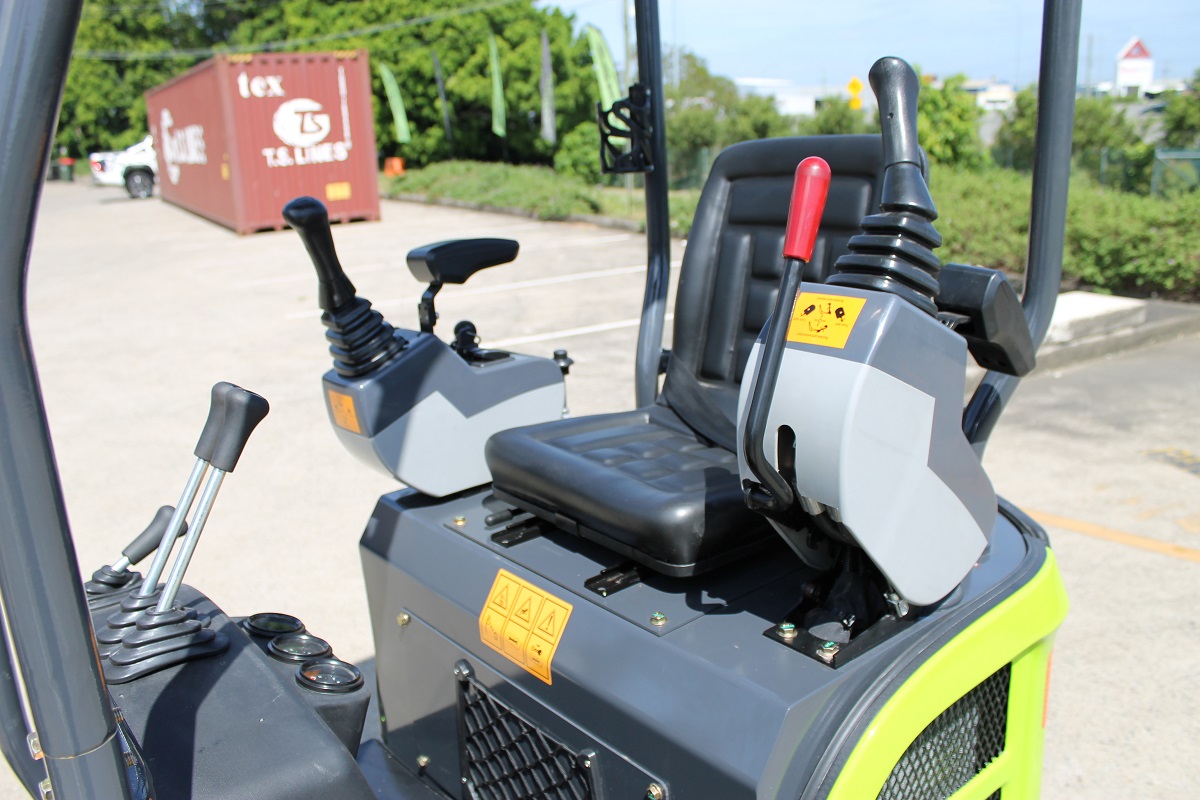

Joystick pilot control system on Achilles mini excavator

COMFORTABLE CONTROL:

Advanced pilot control design and excellent ergonomics provide a comfortable operation, deliver a top experience even in a compact machine.

Achilles mini excavator with two-way swing boom in action

CLOSE TO THE WALL:

With its two-way swing boom, this machine allows operators to easily tackle excavation tasks in tight spaces, such as working close to walls.

Mechanical quick hitch attachment for mini excavators

PAIN FREE SWAP:

Featuring a Mechanical Quick Hitch, which makes changing attachments faster and easier than other machines, boosting efficiency.

SPECIFICATIONS

Engines
Engine Model	YANMAR 3TNV70
Travel Motor	EATON
Main Pump	SAI-SIDA
Engine Power	20.8 HP
Controlling System	Pilot Control
Number of Cylinders	3

Working Range
Max Digging Height	2650mm
Max Digging Depth	1650mm
Max Digging Radius	2950mm
Hydraulic Fluid rate	20-22 L/min
Max Walking Speed	2.1 Km/h

Specification
Boom Swing function	YES
Track Expandable	830mm-1030mm
Max Grade ability	25°
Bucket Capacity	0.028 m³

Dimensions
Overall Length	2770mm
Overall Width	925mm
Overall Height	2300mm
Track Length	1210mm
Track Width	180mm
Track High	330mm
Platform Width	800mm
Ground Clearance	150mm
Operating Weight	1400KG
Hydraulic System Pressure	19 MPa
