COMPACT & POWERFUL
KOOP KD192 is a vertical, single cylinder, air-cooled engine, delivering a power output of 12 horsepower at 3600 RPM
CLOSE TO THE WALL

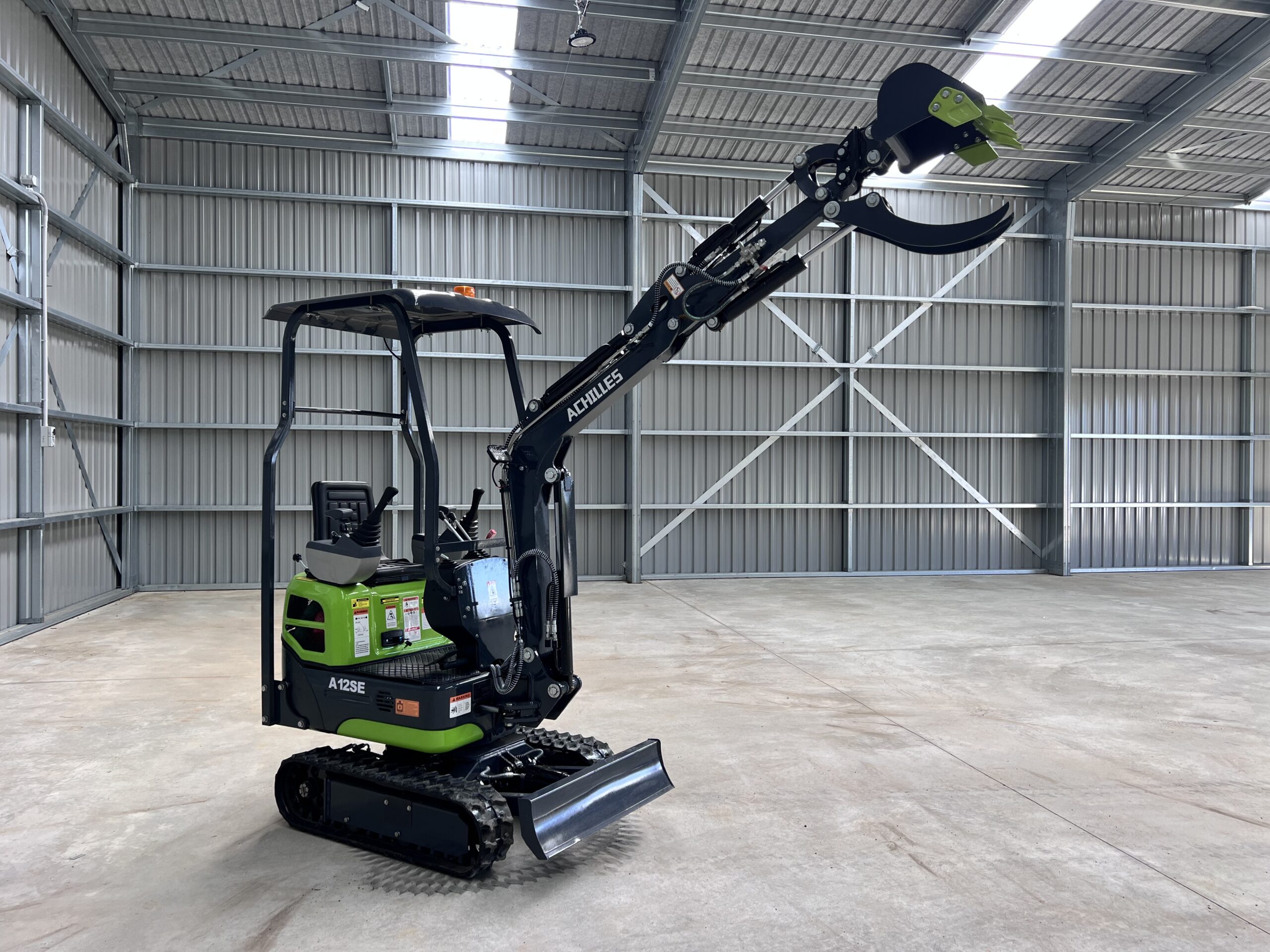

With its two-way swing boom, this machine allows operators to easily tackle excavation tasks in tight spaces, such as working close to walls

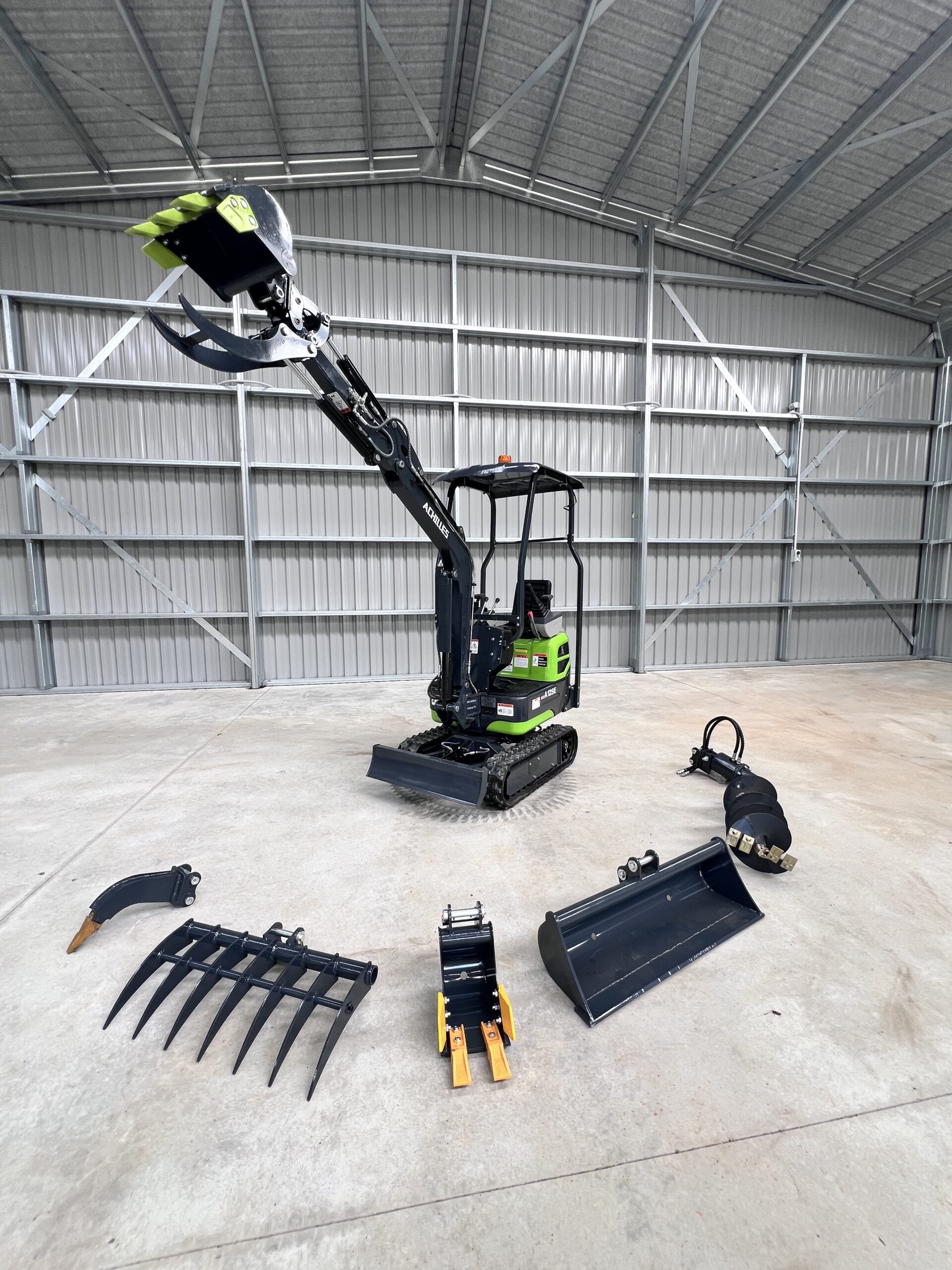

PAIN FREE SWAP

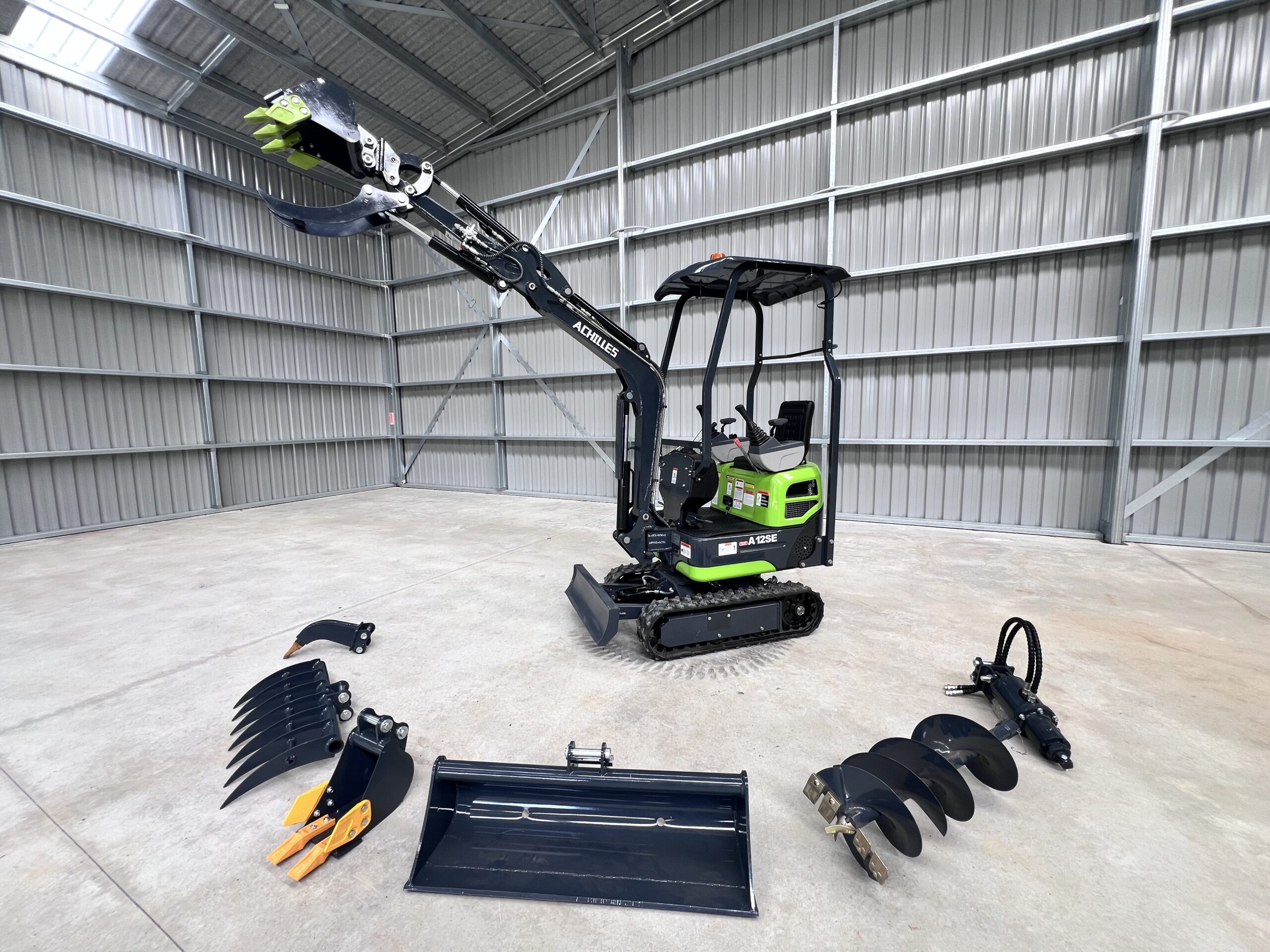

Featuring a Mechanical Quick Hitch, which makes changing attachments faster and easier than other machines, boosting efficiency.

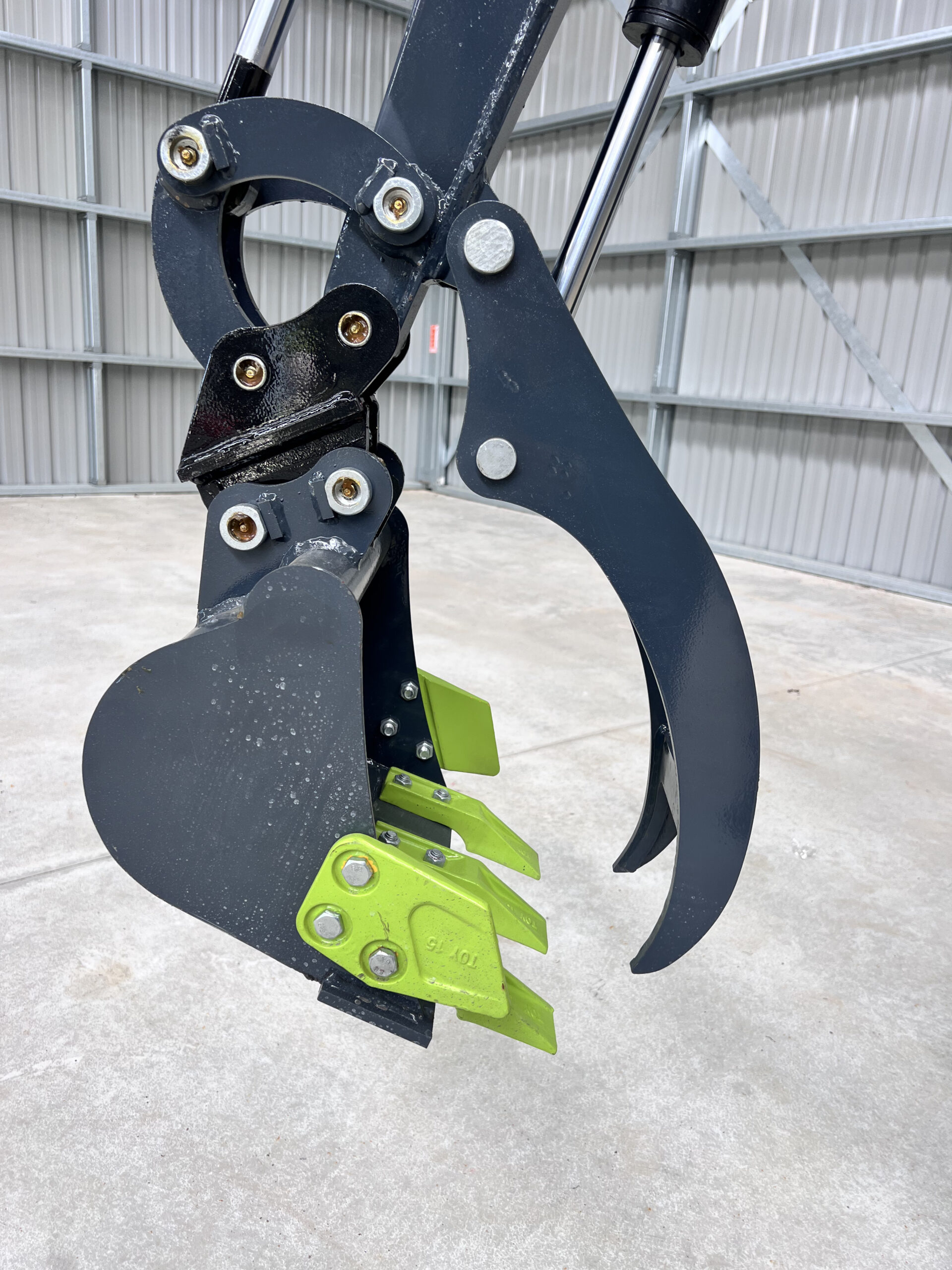

GRAB & GO

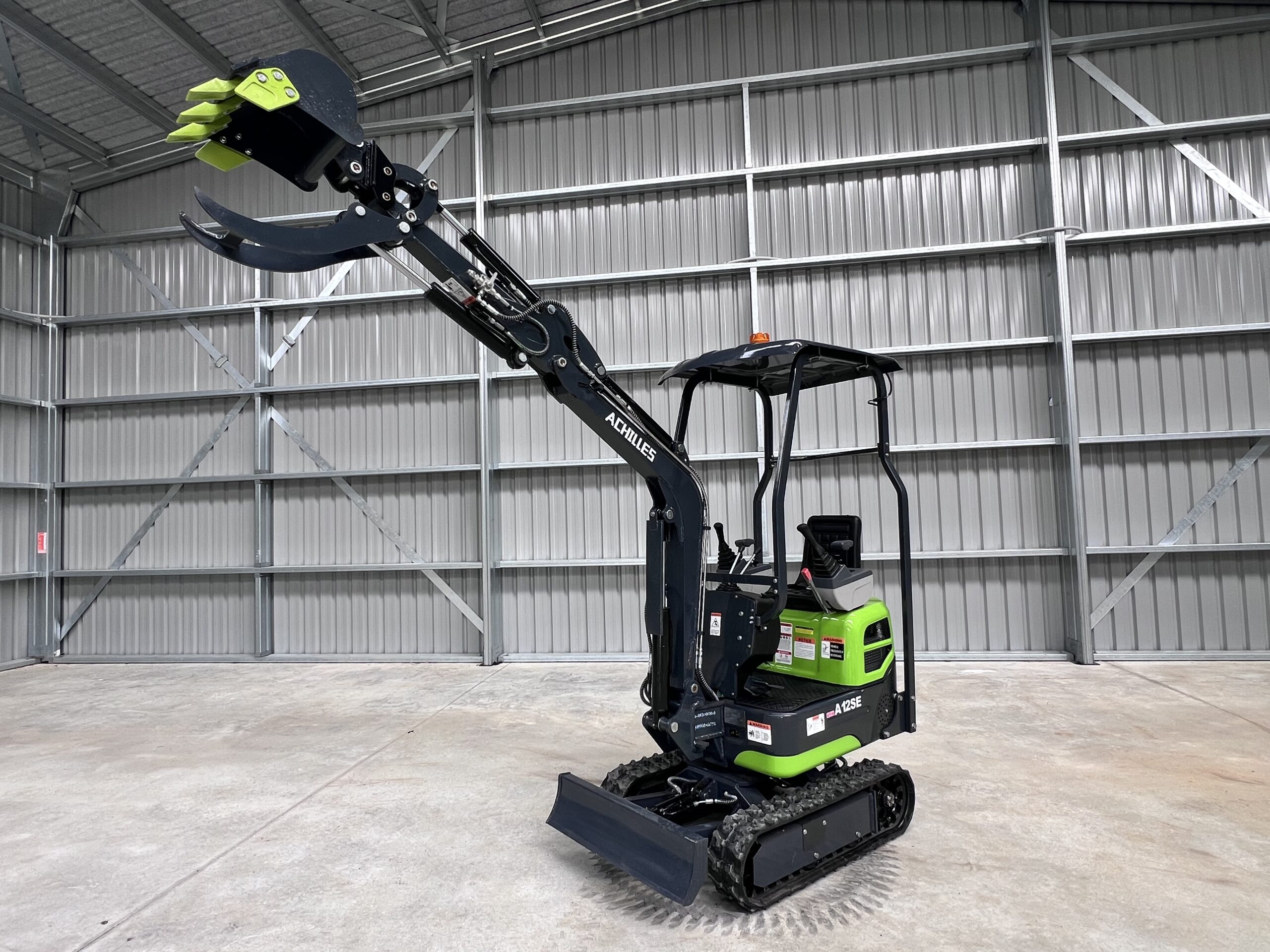

Standard Hydraulic Thumb Grab allows operators to pick up various loads without switching to a specialized grabber, ensuring easy and efficient

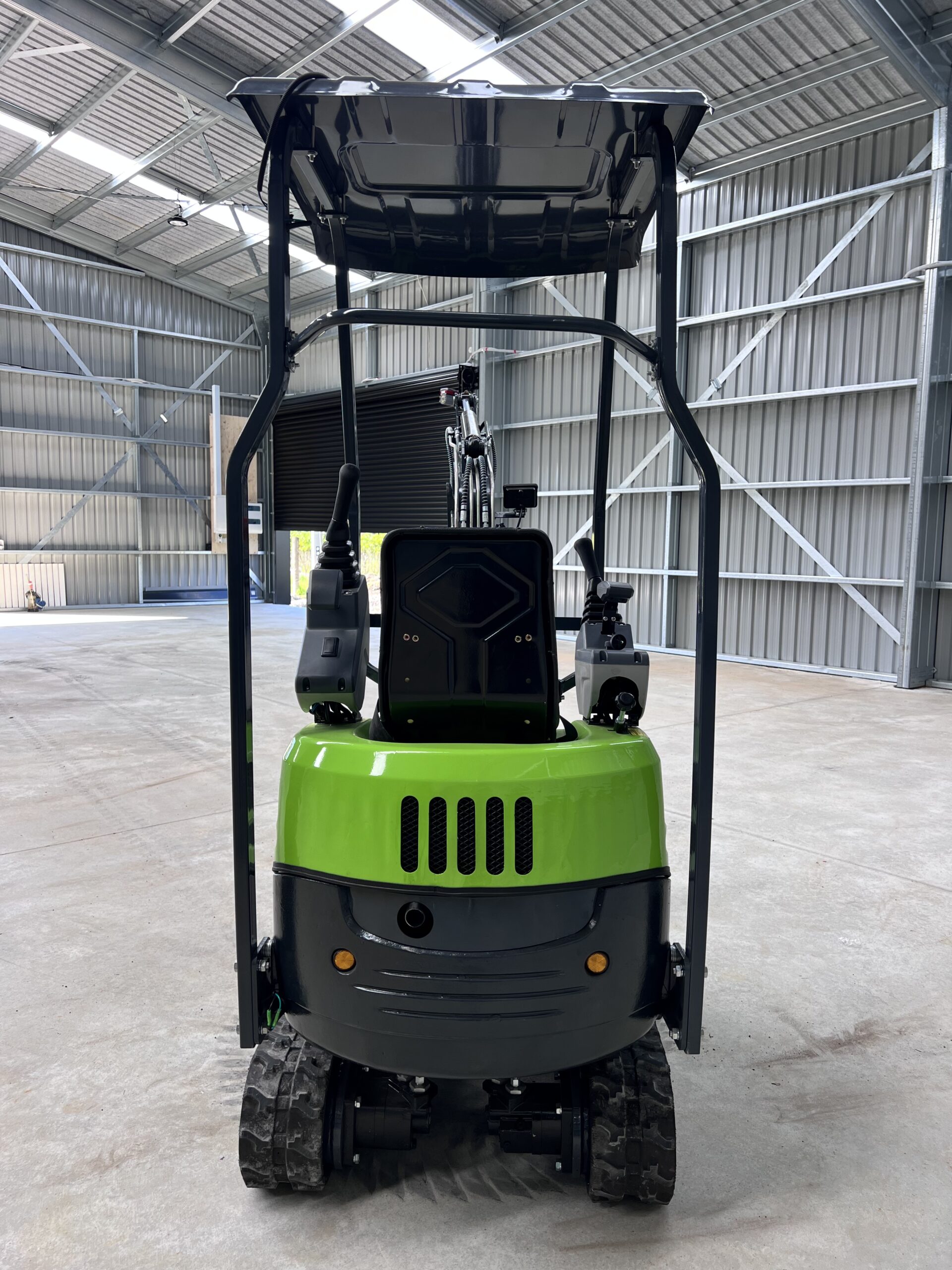

SAFETY FIRST
Our machine is ROPS and FOPS certified, highlighting our commitment to safety. The fully enclosed steel protects operators in extreme conditions.
NO COMPROMISE COOLING
This model features an industry-leading hydraulic oil cooling system unique in its class, ensuring stable operation even in high temperatures.
SOLID & TOUGH
Built with durable materials, this excavator is tough and reliable. Hydraulic systems are industry-leading and protected for long-lasting performance.
EASY ACCESSING
Adjusting with a single switch. The minimum width is 900mm for great accessibility, and it extends to 1030mm for excellent stability.
| Engines | |
|---|---|
| Engine Model | KOOP (KD192) |
| Travel Motor | EATON |
| Main Pump | SAI-SIDA |
| Engine Power | 12 hp |

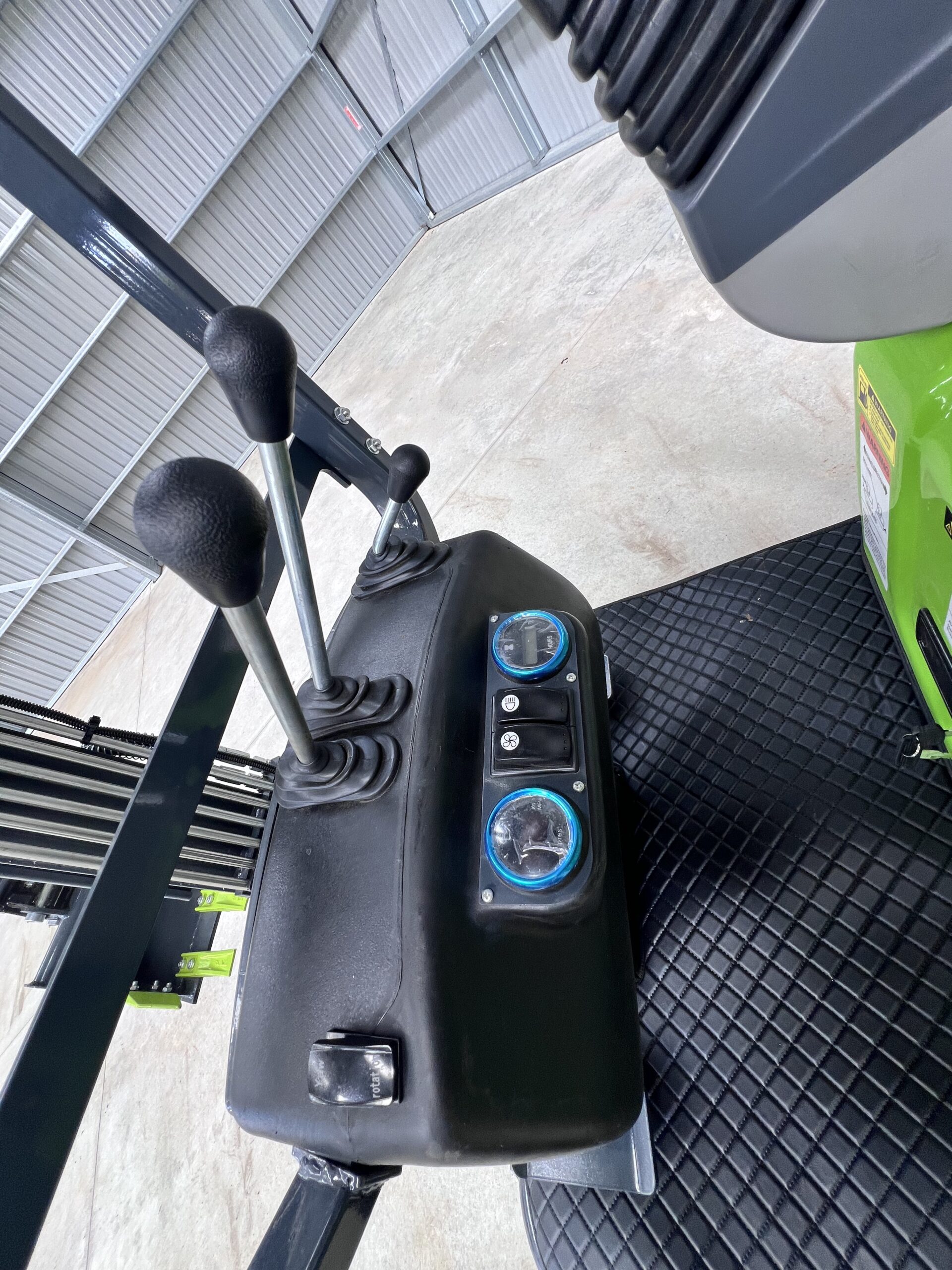

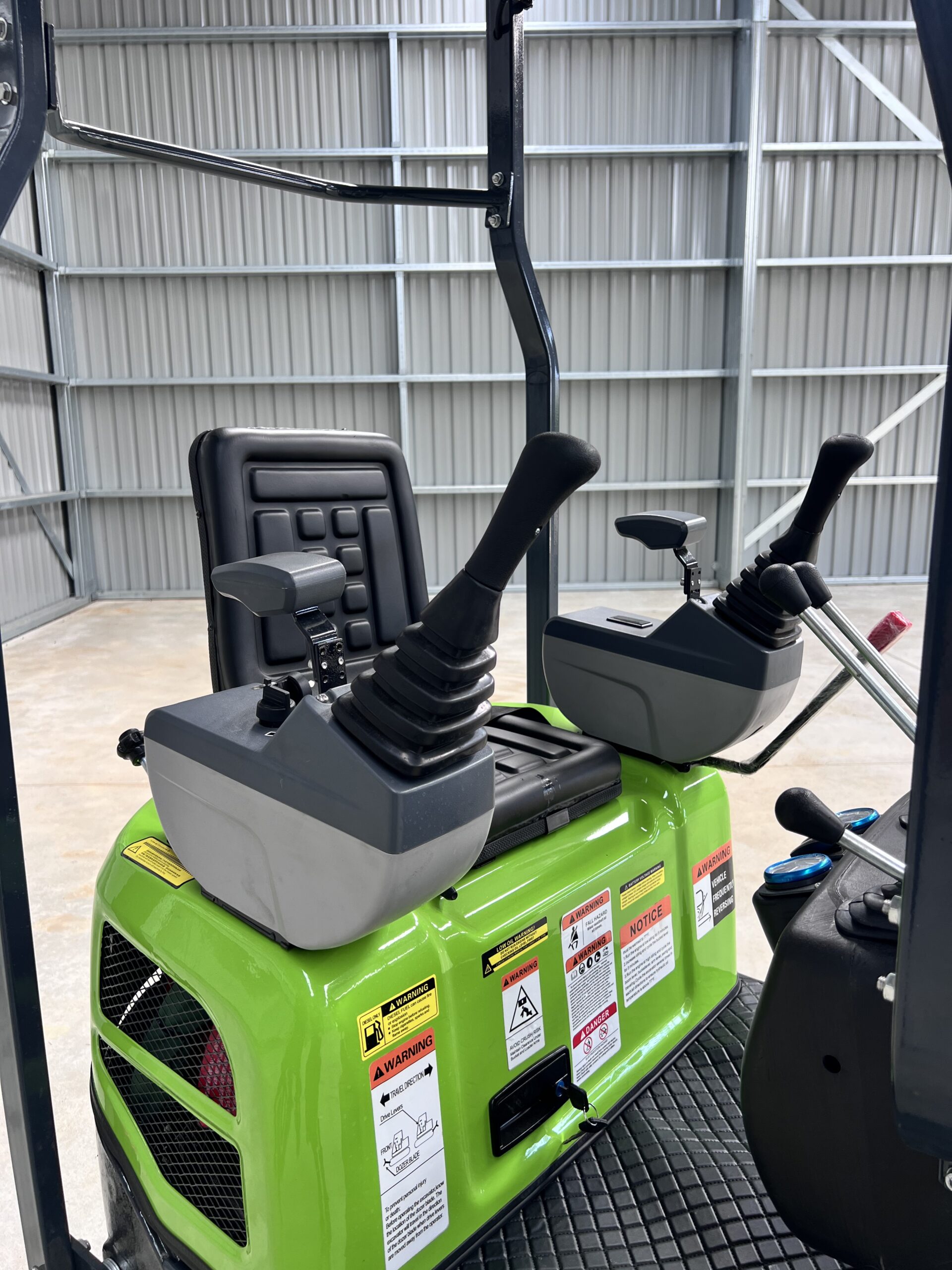

| Controlling System | Mechanical |
| Number of Cylinders | 1 |
| Working Range | |
|---|---|
| Max Digging Height | 2650mm |
| Max Digging Depth | 1500mm |
| Max Digging Radius | 2950mm |
| Hydraulic Fluid rate | 15-17 L/min |
| Max Walking Speed | 2.1 Km/h |
| Specification | |
|---|---|
| Boom Swing function | YES |
| Track Expandable | 900mm-1030mm |
| Max Grade ability | 30° |
| Bucket Capacity | 0.025m³ |
| Dimensions | |
|---|---|
| Overall Length | 2770 mm |
| Overall Width | 925mm |
| Overall Height | 2300mm |
| Track Length | 1210mm |
| Track Width | 180mm |
| Track High | 330mm |
| Platform Width | 800mm |
| Ground Clearance | 150mm |
| Operating Weight | 1200KG |
| Capacity | |
|---|---|
| Fuel Tank | 5L |
| Engine | 1.7L |
| Hydraulic Tank | 18L |
